12/24/36/48V Auto - Negative Grounded Model

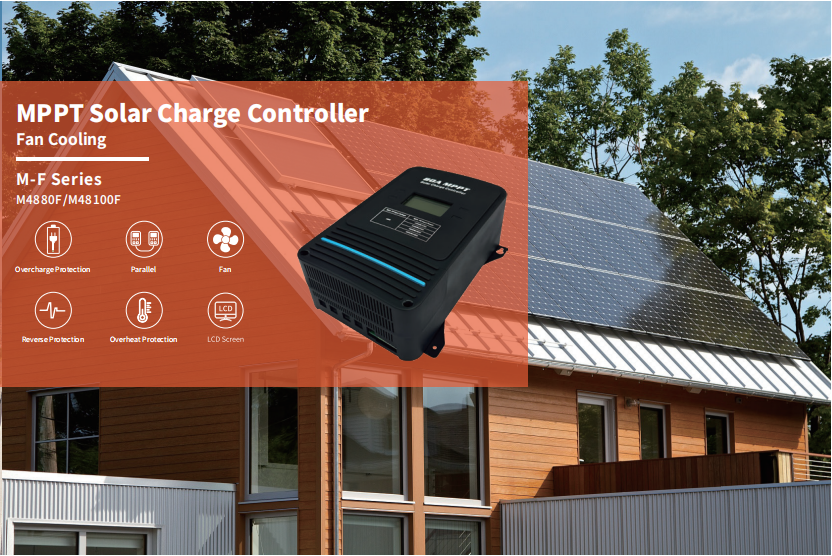

Model No.: M48100F (MPPT Charge Controller)(MPPT Solar Controller)

•  12/24/36/48V battery system auto recognition
•  300 days max data logging
•  ＜150Voc max PV input voltage
•  Negative grounded design for RV use
•  Inbuilt BT module for APP operation
•  MPPT 100A max charge current

Advanced Maximum Power Point Tracking (MPPT) Technology

•  Fast MPPT start with ultra fast of sweeping of the entire V-I curve
•  Smart MPPT algorithm ensures a better tracking in multiple power points
•  High PV harvest performance in weak sunlight conditions
•  Excellent peak efficiency exceeds 98%

High Quality & Functions

•  Aluminum casing for better cooling and charge function in high temperature
•  Tempered glass cover, touch screen button for better operation
•  Polyurethane filled inside for better cooling and waterproof
•  Over rating electronic components to minimize the power loss from heating
•  Full charge power output up to 45ºC
•  Compensates battery charge voltages with use of temperature sensor
•  LCD screen display
•  Lead-acid AGM/GEL/Flooded & Lithium batteries supportable
