Waterproof 10A PWM Solar Charge Controller 12V 24V

Model NO.P2420W

12V/24V battery system

IP68 waterproof design

PWM 3-stage charge

LED indication for charge status

Long cable for connections (optional)

Waterproof 10A PWM Solar Charge Controller 12V 24V

Features

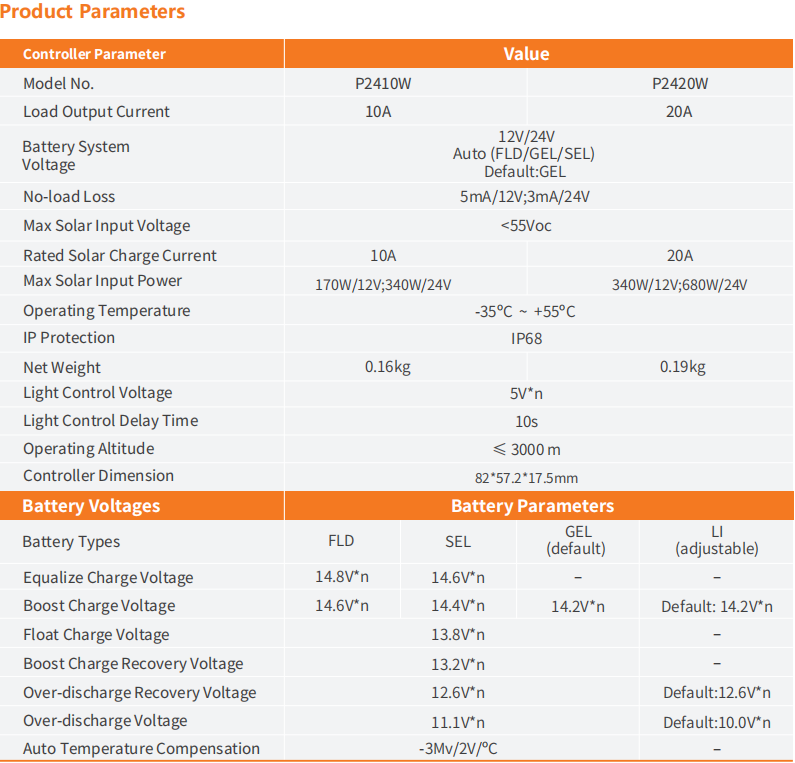

Specifications
Downloads
Optional Accessories

10A waterproof PWM solar charge controller
IP68 10A solar charge controller

Model No.: VENUS-P2420W

Brief design with PWM charge control, supports max 680W solar PV input
IP68 waterproof and aluminum shell design to prevent all kinds of corrosion effectively.
Small sized and customized cable allowed, for more applications

Key Figures

IP68 waterproof design
12V 24V battery system
LED indication for charge status and load status.
DC Load always on.
External temperature sensor with temperature compensation.
Multiple options available for customization before ex-factory. (Customized cables & connectors; Default battery type setting; Bluetooth function for PV and battery monitoring).

Extensive Device Functions

Full range of protection with over-charge, over-discharge, DC load over power, DC load short circuit and anti-reverse connection.
TVS lightning protection.
