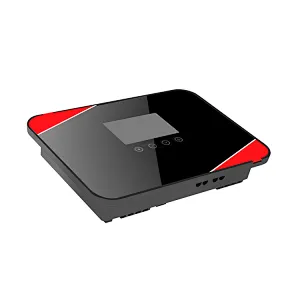

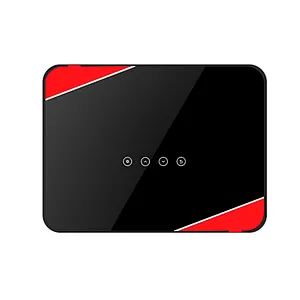

MPPT RV Solar Charge Controller Flush Mount Model M2430C

Model NO.M2430C

M2430C is a MPPT solar charge controller with flush mount design for solar DC power system in RV or other similar applications. It is negative grounded design, and with Bluetooth module built inside for APP monitoring and operation in mobile phone.

30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
30A MPPT RV Solar Charge Controller
  • Features
  • Specifications
  • Downloads
  • Optional Accessories

12/24V Auto - 30A Flush Mount
Negative Grounded MPPT Solar Charge Controller

Model No.: VENUS-M2430C

30A MPPT RV Solar Charge Controller


  • Aluminum casing + Tempered Glass Cover
  • 12/24V battery system auto recognition
  • 300 days max data logging
  • 100Voc max PV input voltage
  • Negative grounded design for RV use
  • Inbuilt BT module for APP operation
  • MPPT 30A max charge current
  • Flush Mount + Touch screen operation


Advanced Maximum Power Point Tracking (MPPT) Technology

  •  Fast MPPT start with ultra fast of sweeping of the entire V-I curve
  •  Smart MPPT algorithm ensures a better tracking in multiple power points
  •  High PV harvest performance in weak sunlight conditions
  •  Excellent peak efficiency exceeds 98%

High Quality & Functions

  •  Aluminum casing for better cooling and charge function in high temperature
  •  Tempered glass cover, touch screen button for better operation
  •  Polyurethane filled inside for better cooling and waterproof
  •  Over rating electronic components to minimize the power loss from heating
  •  Full charge power output up to 45ºC
  •  Compensates battery charge voltages with use of temperature sensor
  •  LCD screen display
  •  Lead-acid AGM/GEL/Flooded & Lithium batteries supportable

Reliable Electronic Protections

  •  Advanced protections for battery charge & discharge
  •  Over-heating protection by power derating if temperature is high
  •  Allow max 25% exceeding rated power without controller damage
  •  Extensive protections including PV reverse polarity & reverse current protection

Extensive Device Functions

  •  RS485 port for Modbus communication
  •  External Bluetooth module connection for APP operation
  •  External remote LCD display connection

Application:

    RV/CaravanMarineSolar Home


Solar Controller Parameter Value
Model No. M2430C
System Wiring Grounded Negative Grounded
Battery System Voltage 12V/24V Auto (FLD/GEL/SLD)
Manual (Li/User)
No-load Loss 12mA/12V ; 10mA/24V
Max Solar Input Voltage <100Voc
Rated Solar Charge Current 30A
Max Solar Input Power 450W/12V ;  900W/24V
Operating Temperature -35ºC ~ +45ºC
IP Protection IP34
Net Weight 2.2 KG
Communication Port RS485+Bluetooth(APP)
Operating Altitude ≤ 3000 meters
Controller Dimension 250*180*50mm
Battery Voltages Battery Parameters
Battery Types FLD SEL GEL
(Default)
USER
(Adjustable)
LI
(Adjustable)
Equalize Charge Voltage 14.8V*n 14.6V*n Default
Boost Charge Voltage 14.6V*n 14.4V*n 14.2V*n Default: GEL Default: 14.2V*n
Float Charge Voltage 13.8V*n Default: GEL
Boost Charge Recovery Voltage 13.2V*n Default: GEL
Over-discharge Recovery Voltage
Over-discharge Voltage
Auto Temperature Compensation -3mV/2V/ºC Default: GEL
Accessory List Package Status
External Temperature Sensor Yes
Remote LCD Meter Optional
Bluetooth Module Yes/Inbuilt
Parallel Charge Use Cable Optional
Installation Guidance Paper Yes
User Manual Yes
