10A PWM Solar Charge Cnotroller 12/24V Auto - Flush Mount - RV Controller

Model NO.P2410C

P2410C is a solar charge controller with advanced Pulse Width Management (PWM) 3-phase charge technology, for small size solar stand alone power system.

With an additional mounting bracket, we offer 2 ways of installations for this controller, flat fixture on the work desk or wall, and flush mount for system cabinet or RV/caravans.

100 watt solar charge controller
100 watt solar charge controller
solar charge controller for rv
solar charge controller rv
2kw solar charge controller
top solar charge controller manual
solar charge controller with remote display
100 watt solar charge controller
solar charge controller for rv
solar charge controller rv
2kw solar charge controller
top solar charge controller manual
solar charge controller with remote display
  • Features
  • Specifications
  • Downloads
  • Optional Accessories

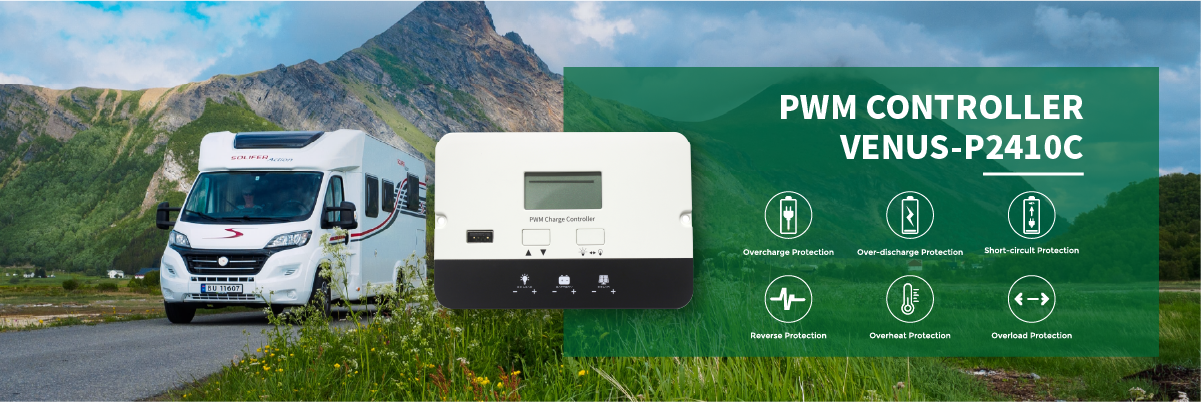

10A PWM Solar Charge Controller - Flush Mount & Flat Fixture

12/24V Auto - RV Controller

Model No.: VENUS-P2410C




Key Figures

  •  12/24V battery system auto recognition
  •  Flush mount fixture & Flat Fixture
  •  RV / Caravan / Cabinet uses
  •  Full range of electronic protections
  •  LCD display & key operation for parameter settings
  •  Lead-acid AGM/GEL/Flooded & Lithium battery supportable
  •  Multiple MOSFET & optimized PCBA design for better cooling effect


Extensive Device Functions

  •  Li mode use for lithium battery charge & discharge
  •  Up to 17 kinds of DC load output control, including"dusk to dawn"& manual switch
  •  Extra USB 5V 1A DC output
  •  One more year of warranty than other similar models in the market


Application:

    RV/CaravanMarineSolar HomeSolar Bag
            RV/Caravan                     Marine                      Solar Home                   Solar Bag



SOLAR CONTROLLER PARAMETER
Controller Parameter Value
Model No. P2410C
System Wiring Grounded Negative Grounded
Battery System Voltage 12V/24V
Auto (FLD/GEL/SLD)
Manual (Li)
No-load Loss 8ma/ 12V ; 12ma/24V
Max Solar Input Voltage <55Voc
Rated Solar Charge Current 10A
Max Solar Input Power 170W/12V ; 340W/24V
Light Control Voltage 5V*n
Light Control Delay Time 10s
Max Load Output Current 10A
USB Output 5V 1A
Operating Temperature -35ºC ~ +45ºC
IP Protection IP32
Net Weight 0.2 kg
Operating Altitude ≤ 3000 m
Controller Dimension 130*90*34.5mm
Battery Voltages Battery Parameters
Battery Types FLD SEL GEL
(default)
LI
(adjustable)
Equalize Charge Voltage  14.8V*n   14.6V*n  - -
Boost Charge Voltage  14.6V*n  14.4V*n 14.2V*n Default: 14.2V*n
Float Charge Voltage 13.8V*n -
Boost Charge Recovery Voltage 13.2V*n -
Over-discharge Recovery Voltage 12.6V*n - -
Over-discharge Voltage 11.1V*n - Default: 11.1V*n
Accessory List Package Status
Extra Mounting Bracket Yes
User Manua Yes
