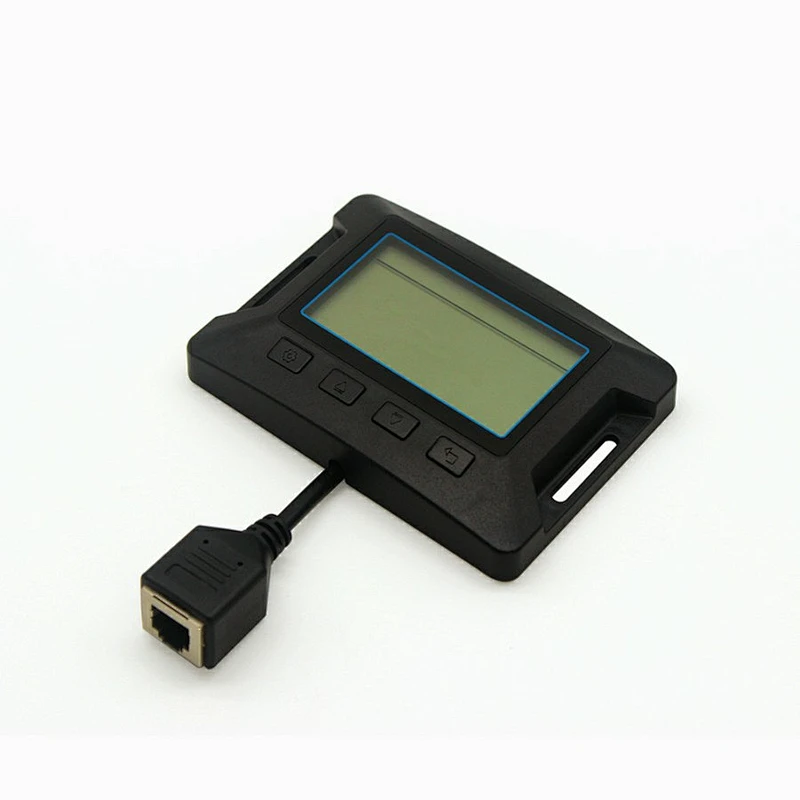

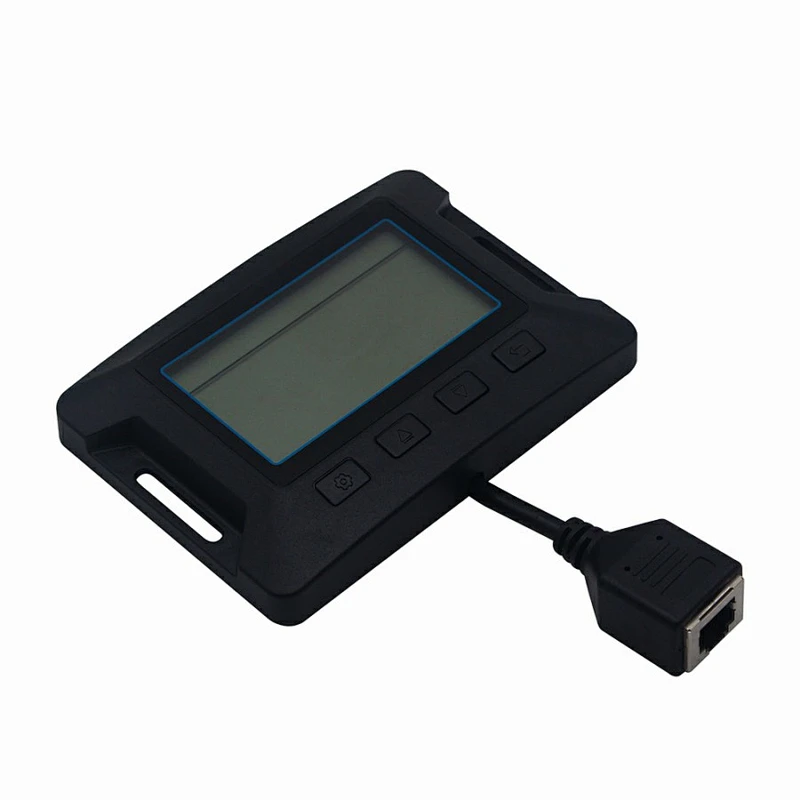

Remote LCD Display For Solar Charge Controller

Model NO.DS

This LCD display product has been used as the remote diplay unit for our HeliosNE charge controllers. You can check the working status and parameters in the screen, and set the system working parameters by the key press operation.

remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
remote display for solar charge controller
  • Features
  • Specifications
  • Downloads
  • Optional Accessories

Solar Charge Controller Remote Display
Remote display for solar charge controller

Model: DS (Remote Display)

This Remote display for solar charge controller has been used as the remote diplay unit for our HeliosNE solar charge controllers.
You can check the working status and parameters in the screen, and set the system working parameters by the key press operation.


Key Figures

  • Exclusive design for PV charge system monitoring
  • Applicable for mppt models controller
  • Easy fixture for remote monitoring
  • 4 keys for multiple operation settings
  • 2 ways of installation
  • Inbuilt BT module for APP operation(Optional)


Installation methods

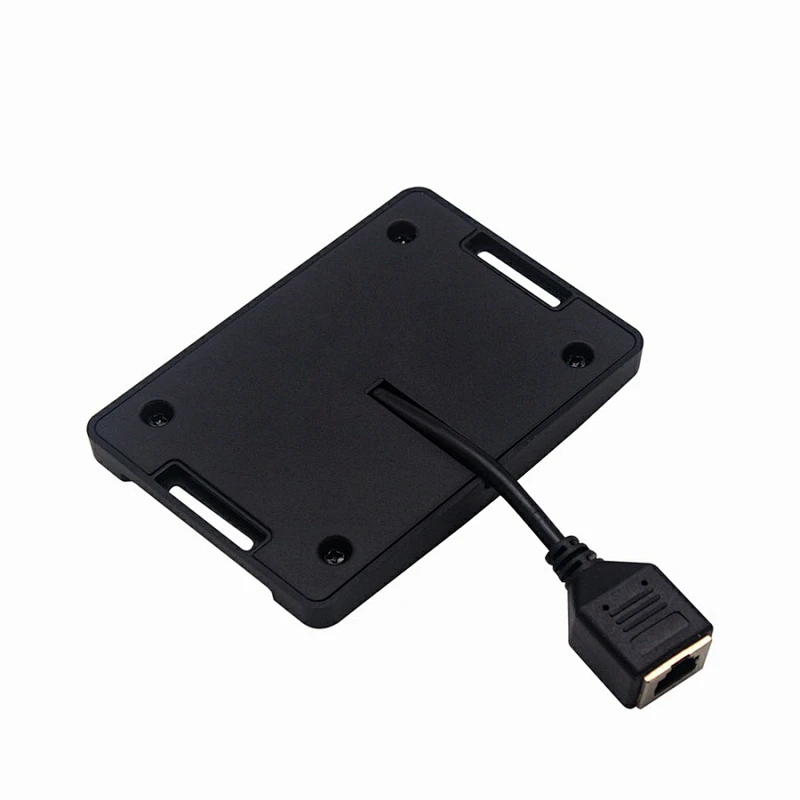

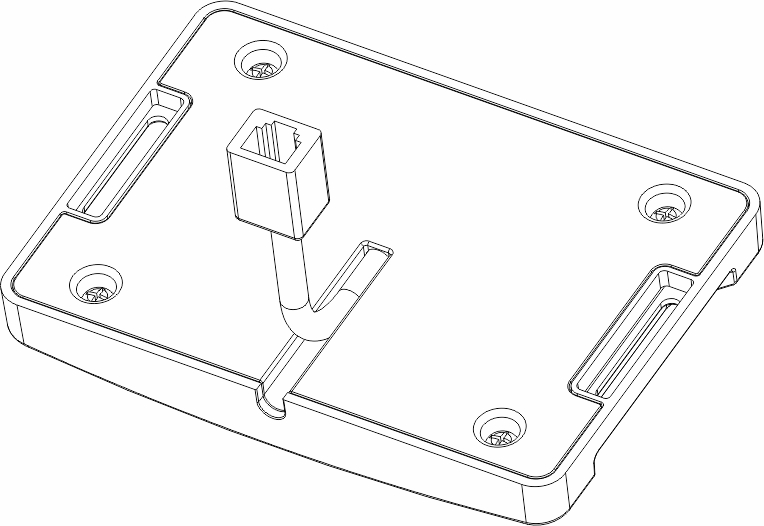

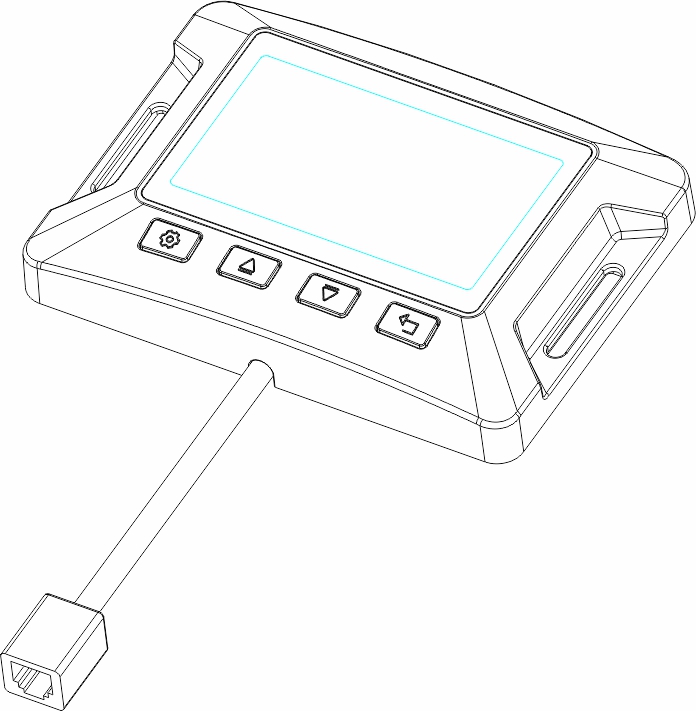

We provide 2 ways of wiring placement as shown in picture below for different installation uses. The user can either mount the screen directly on the wall, on fix it to the cabinet with wiring extended from the back of the screen.

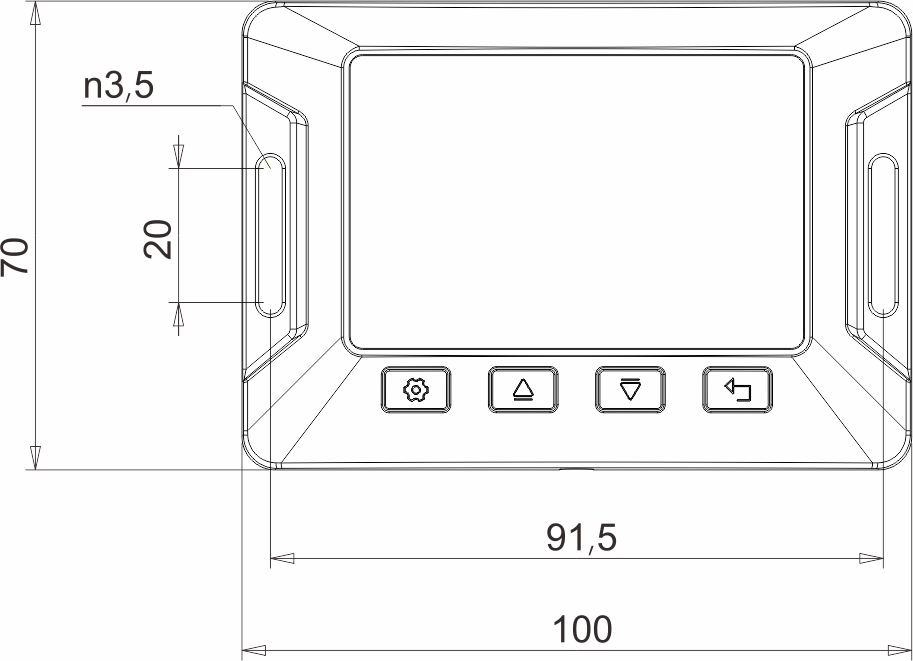

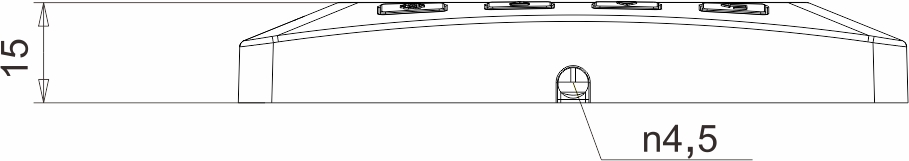

Dimensions of Remote Display
