P2420 is a solar charge controller with advanced Pulse Width Management (PWM) 3-phase charge technology, for small size solar stand alone power system.
It is a basic and typical solar controller model, widely used all around the world, with various kinds of uses.
20A PWM Solar Charge Controller
12/24V Auto
Model No.: VENUS-P2420
Management (PWM) 3-phase charge technology, for small size solar stand alone power systems. It is a basic and typical solar controller model, widely used all around the world, with various kinds of uses.
Key Figures
Extensive Device Functions

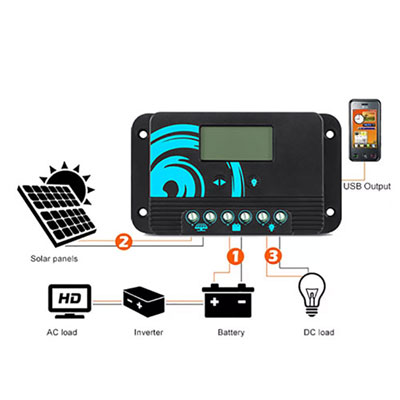

Application:

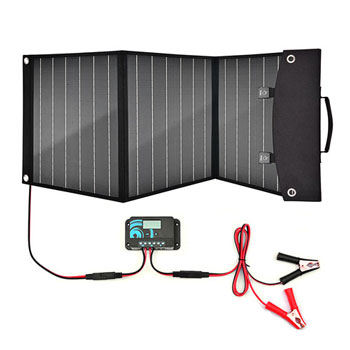

RV/Caravan Marine Solar Home Solar Bag
CONTROLLER PARAMETER
Controller Parameter | Value | |||||
Model No. | P2410 | P2420 | ||||
Battery System Voltage | 12V/24V Auto (FLD/GEL/SLD) Manual (Li) |
|||||
No-load Loss | 12ma/ 12V; 10ma/24V | |||||
Max Solar Input Voltage | <55Voc | |||||
Rated Solar Charge Current | 10A | 20A | ||||
Max Solar Input Power | 170W/12V; 340W/24V | 340W/12V; 680W/24V | ||||
Light Control Voltage | 5V*n | |||||
Light Control Delay Time | 10s | |||||
Max Load Output Current | 10A | 20A | ||||
USB Output | 5V 1A | |||||
Operating Temperature | -35ºC ~ +45ºC | |||||
IP Protection | IP32 | |||||
Net Weight | 0.17 kg | |||||
Operating Altitude | ≤ 3000 meters | |||||
Controller Dimension | 122*70*34.5mm | |||||
Battery Voltages | Battery Parameters | |||||
Battery Types | FLD | SEL | GEL (default) |
USER (adjustable) |
LI (adjustable) |
|
Equalize Charge Voltage | 14.8V*n | 14.6V*n | - | Default | - | |
Boost Charge Voltage | 14.6V*n | 14.4V*n | 14.2V*n | Default: GEL | Default: 14.2V*n | |
Float Charge Voltage | 13.8V*n | Default: GEL | - | |||
Boost Charge Recovery Voltage | 13.2V*n | Default: GEL | - | |||
Over-discharge Recovery Voltage | 12.6V*n | Default: GEL | - | |||
Over-discharge Voltage | 11.1V*n | Default: GEL | Default: 11.1V*n |
