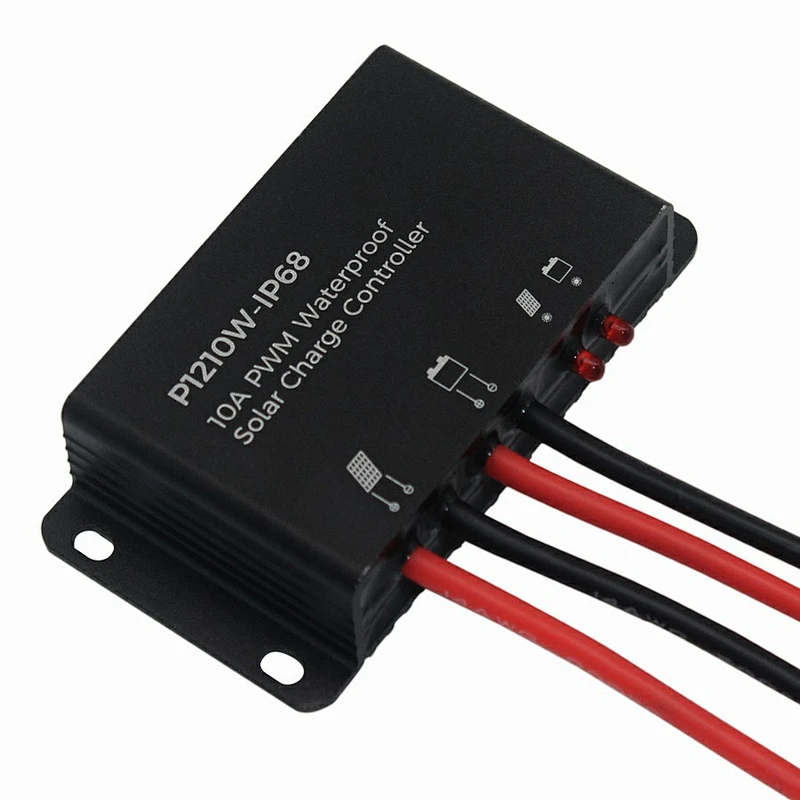

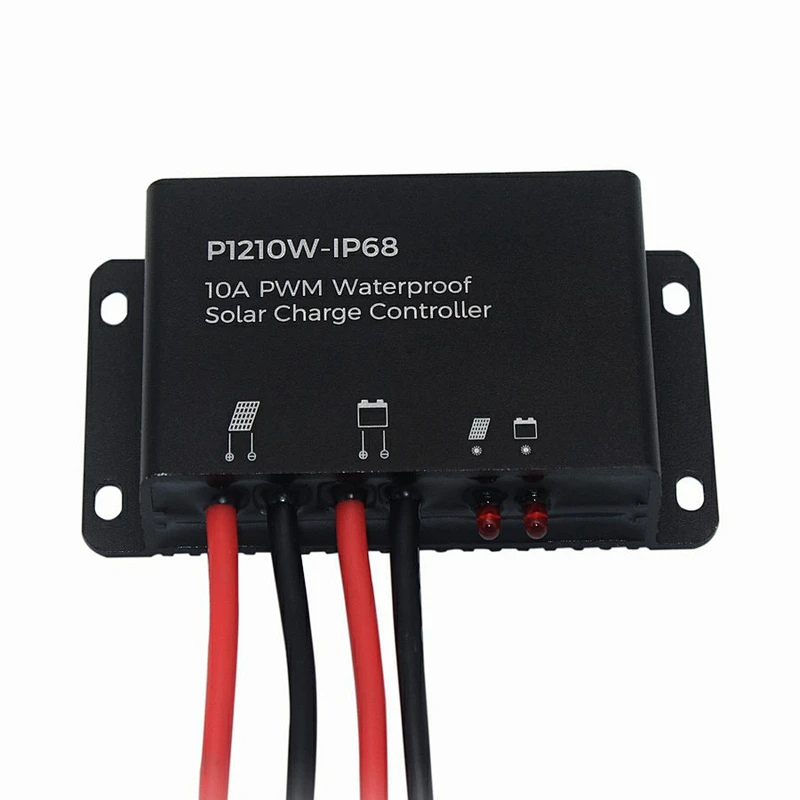

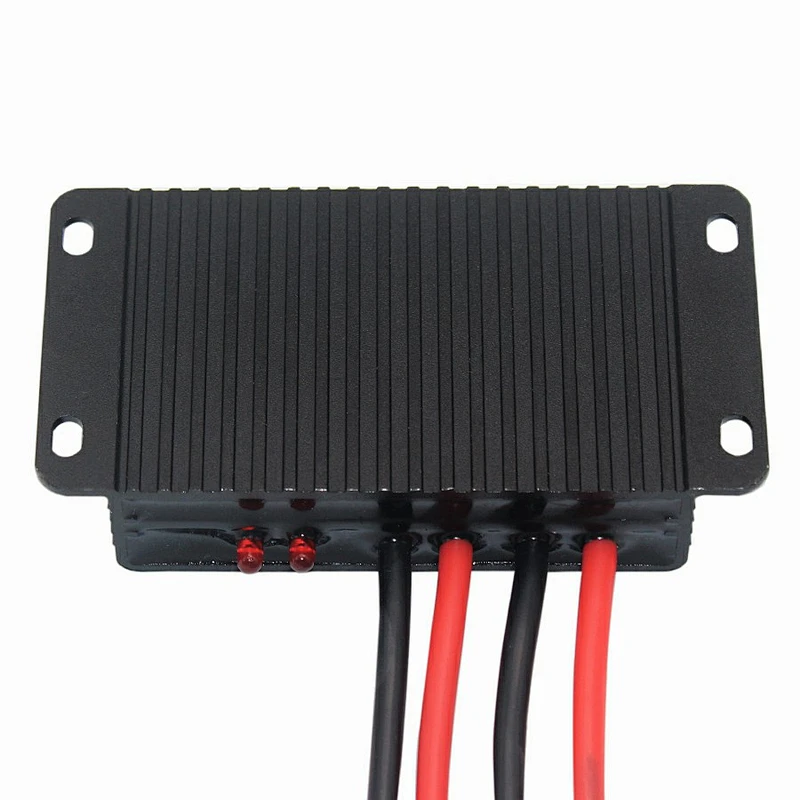

Waterproof 10A PWM Solar Charge Controller 12V

Model NO.P1210W

P1210W is 12V 10A PWM solar charge controller only for solar charging function.

It is waterproof IP68 design, mainly used in outdoors solar power systems in small size, usually a single panel system.

Waterproof 10A PWM Solar Charge Controller 12V

Features
Specifications
Downloads
Optional Accessories

10A waterproof PWM solar charge controller
IP68 10A solar charge controller

Model No.: VENUS-P1210W

Brief design with PWM charge control, supports max 170W solar PV input
IP68 design for almost all installation environment outdoors
Small sized and customized cable allowed, for more applications

Key Figures

IP68 waterproof design
12V battery system only
PWM 3 stage charge
LED indication for charge statuts
PV MC4 connectors (optional)
Long cable for connections (optional)
Only for battery charge use

Extensive Device Functions

Plug & play, small size for convenient operation
Reliable with 3 years warranty
Suitable for DC charge pack applications

Marine
Marine Solar Bag

CONTROLLER PARAMETER

Controller Parameter	Value
Model No.	P1210W
Battery System Voltage	12V Only
Max System Current	10A
No-load Loss	8mA
Max Solar Input Voltage	<30Voc
Max Solar Input Power	150W
Equalize Charge Voltage	14.6V
Boost Charge Voltage	14.4V
Float Charge Voltage	13.8V
Boost Charge Recovery Voltage	13.2V
Equalize Charge Duration	2 Hours
Boost Charge Duration	2 Hours
Operating Temperature	-31℉-140℉/-35℃-60℃
IP Protection	IP68
Controller Dimension	824317.5mm
Net Weight	0.11kg
Controller Parameter	Value
User Manual	Yes
