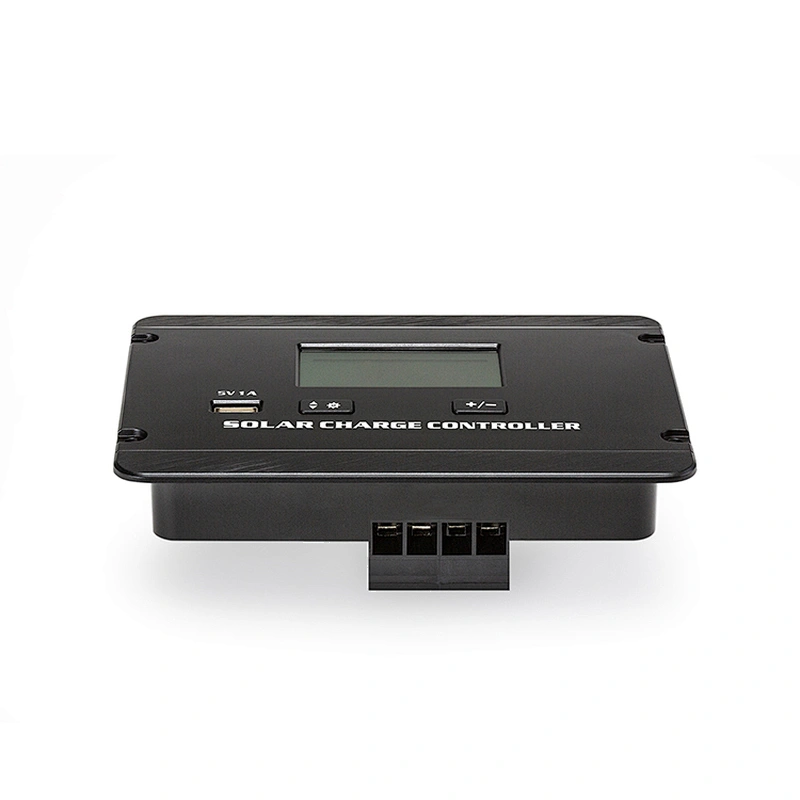

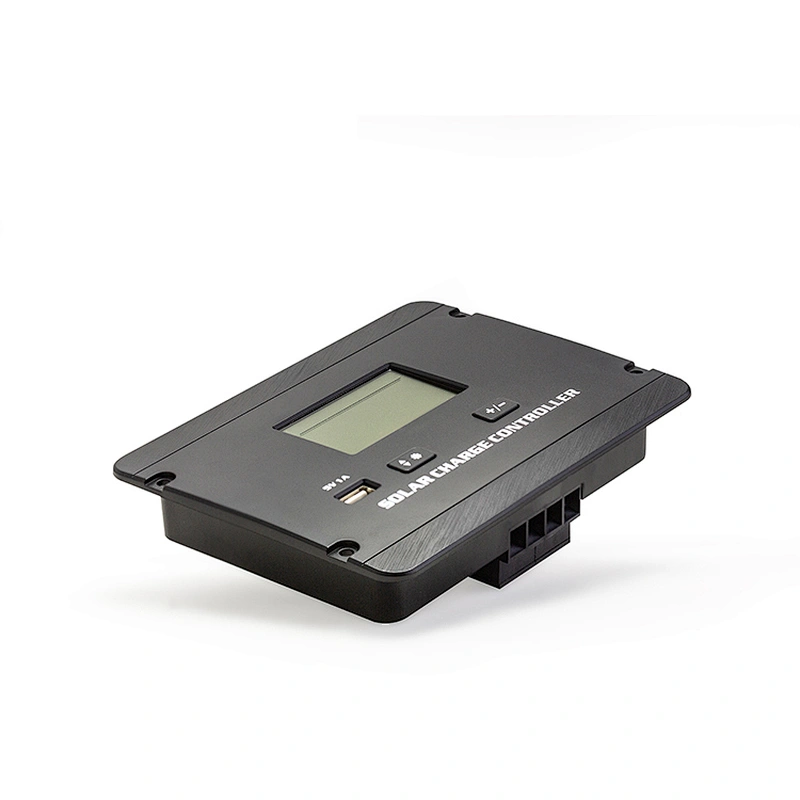

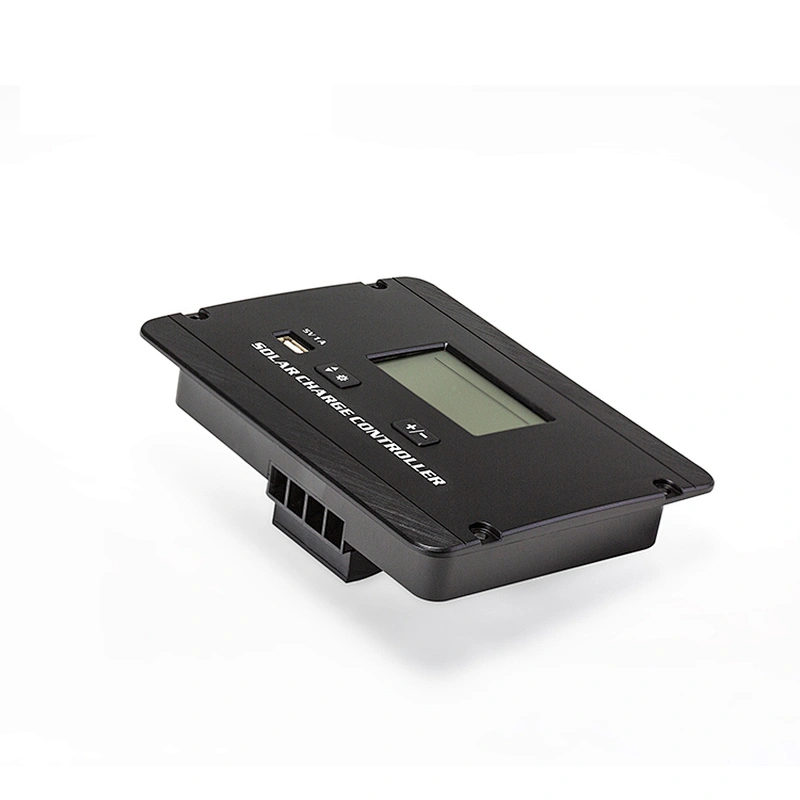

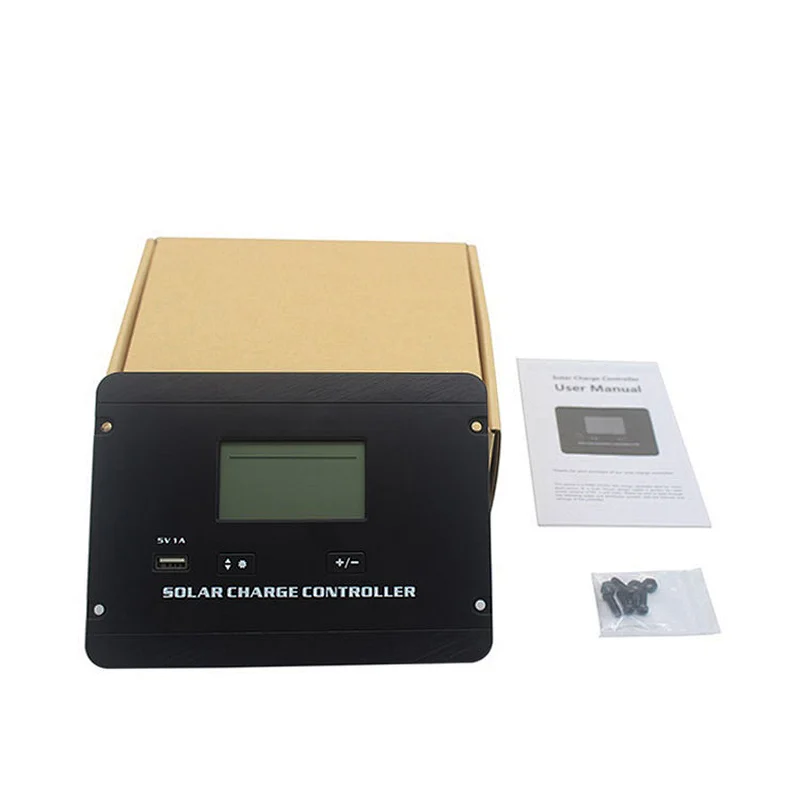

30A PWM Solar Charge Cnotroller 12/24V Auto - Flush Mount - RV Controller

Model NO.P2430C

P2430C is a flush mount type solar charge controller with advanced Pulse Width Management (PWM) 3-phase charge technology, mainly for solar power system in RV/caravan or similar applications.

It is a negative grounded model, suitable for systems with PCBA wiring negative grounded (mainly required in North America).

30A PWM Solar Charge Cnotroller 12/24V Auto - Flush Mount - RV Controller

Features
Specifications
Downloads
Optional Accessories

30A PWM Solar Charge Controller - Flush Mount

12/24V Auto - RV Controller - Negative Grounded

Model No.: VENUS-P2430C

Key Figures

12/24V battery system auto recognition
Flush mount fixture for RV/caravan or system cabinet installation
PCB wiring negative grounded design
Full range of electronic protections

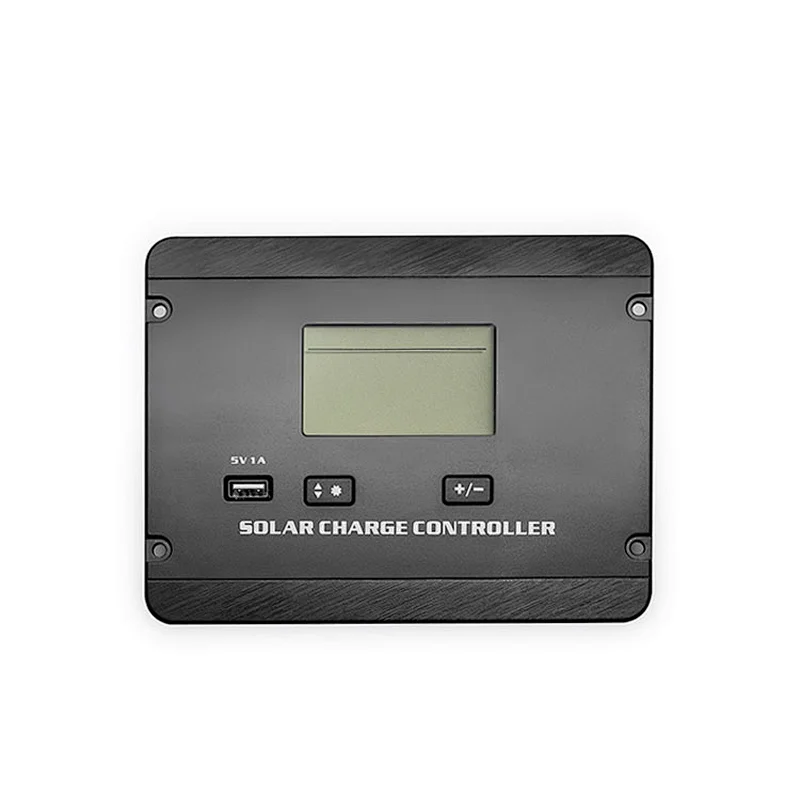

LCD display & key operation for parameter settings
Lead-acid AGM/GEL/Flooded & Lithium battery supportable

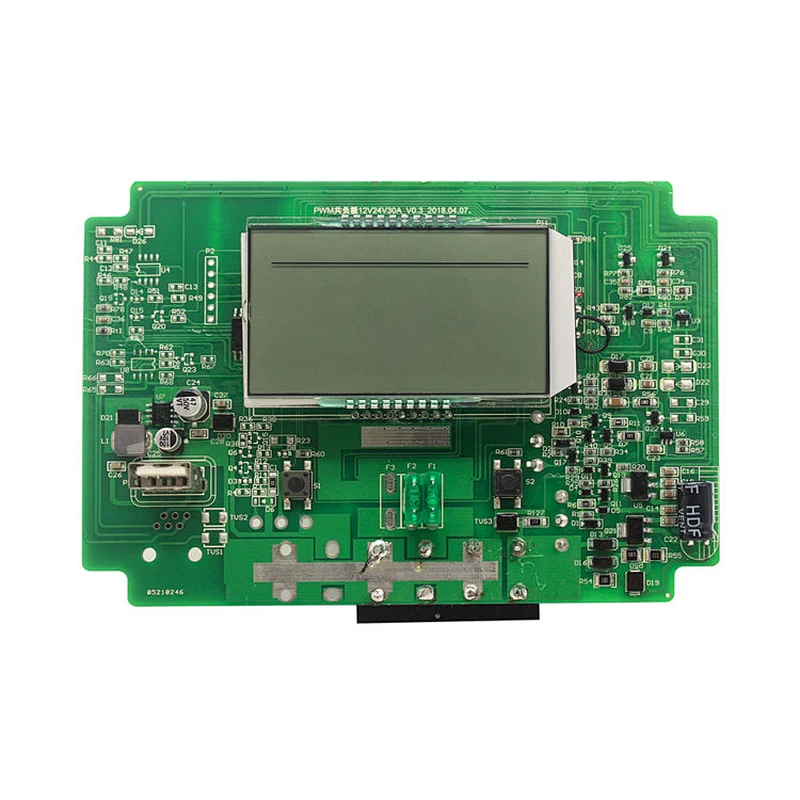

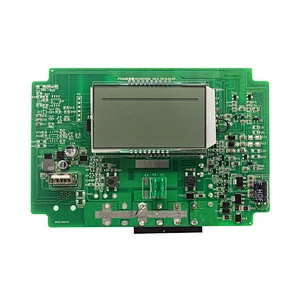

Multiple MOSFET & optimized PCBA design for better cooling effect
Only for battery charge use

Extensive Device Functions

Li mode use for lithium battery charge
Extra USB 5V 1A DC output
One more year of warranty than most of the other PWM controllers

Application:

Marine
RV/Caravan Marine Solar Home Solar Bag

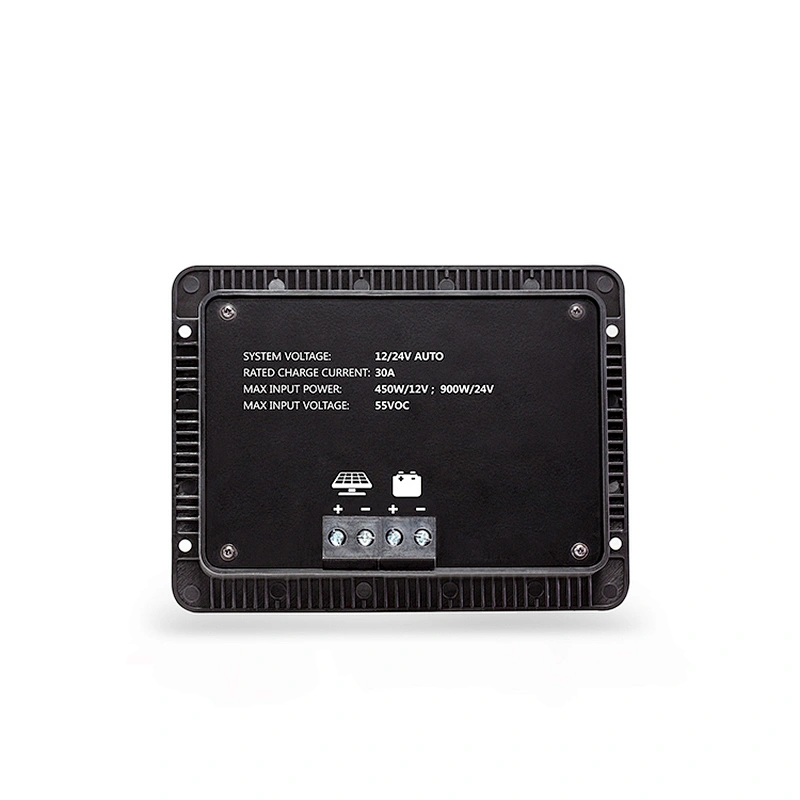

SOLAR CHARGE CONTROLLER PARAMETER

Controller Parameter	Value
Model No.	P2430C
System Wiring Grounded	Negative Grounded
Battery System Voltage	12V/24V
	Auto (FLD/GEL/SLD)
	Manual (Li)
No-load Loss	8ma/ 12V ; 12ma/24V
Max Solar Input Voltage	<55Voc
Rated Solar Charge Current	30A
Max Solar Input Power	450W/12V ; 900W/24V
USB Output	5V 1A
Operating Temperature	-35ºC ~ +45ºC
IP Protection	IP32
Net Weight	0.49 kg
Operating Altitude	≤ 3000 m
Controller Dimension	17013042mm
Battery Voltages	Battery Parameters
Battery Types	FLD	SEL	GEL (default)	LI (adjustable)
Equalize Charge Voltage	14.8V*n	14.6V*n	-	-
Boost Charge Voltage	14.6V*n	14.4V*n	14.2V*n	Default: 14.2V*n
Float Charge Voltage		13.8V*n		-
Boost Charge Recovery Voltage		13.2V*n		-
Over-discharge Recovery Voltage		-	-	-
Over-discharge Voltage		11.1V*n	-	Default: 11.1V*n
