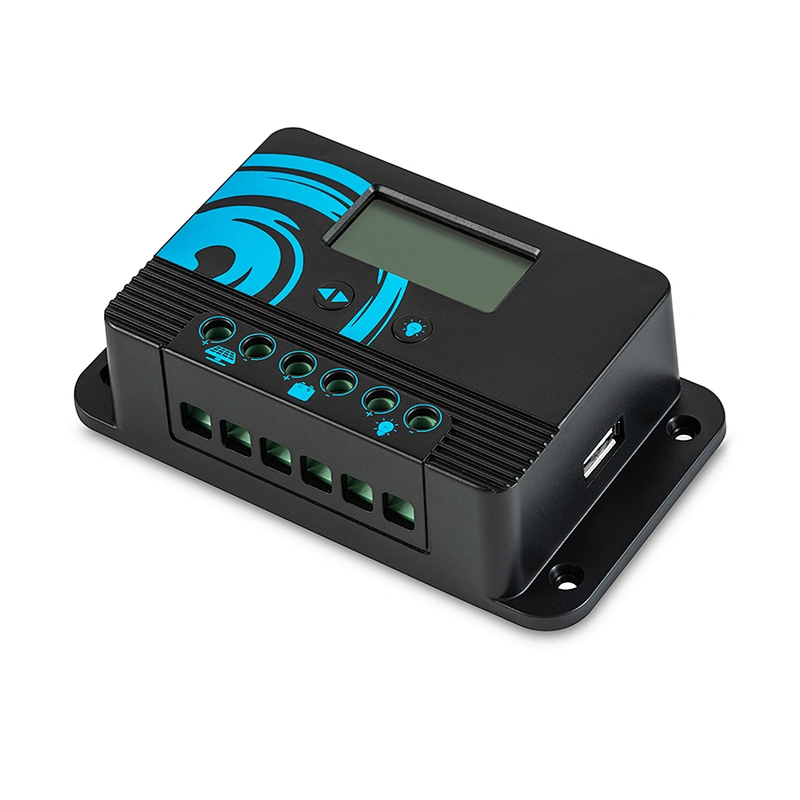

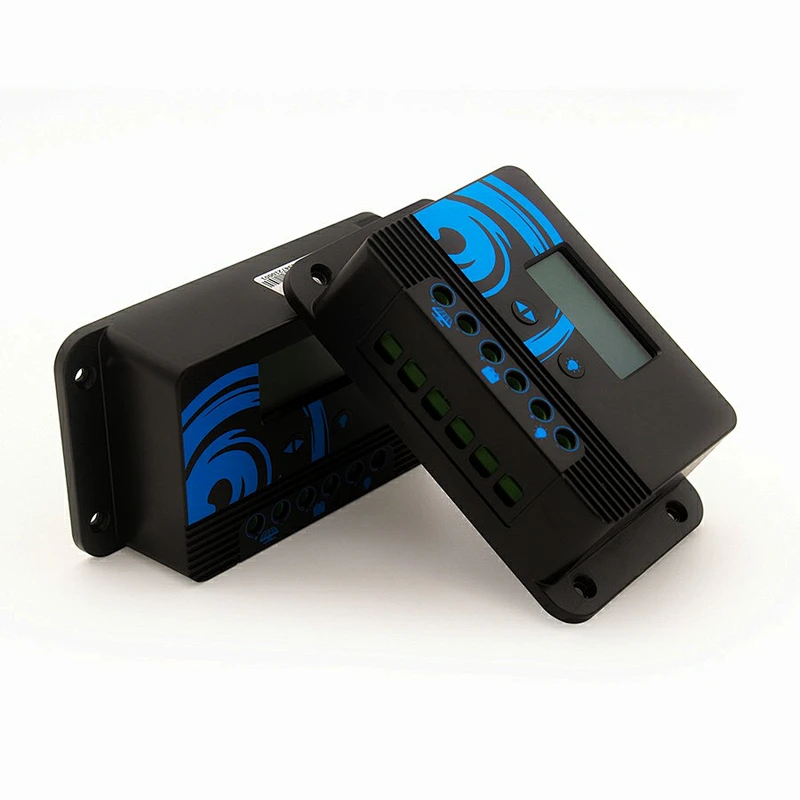

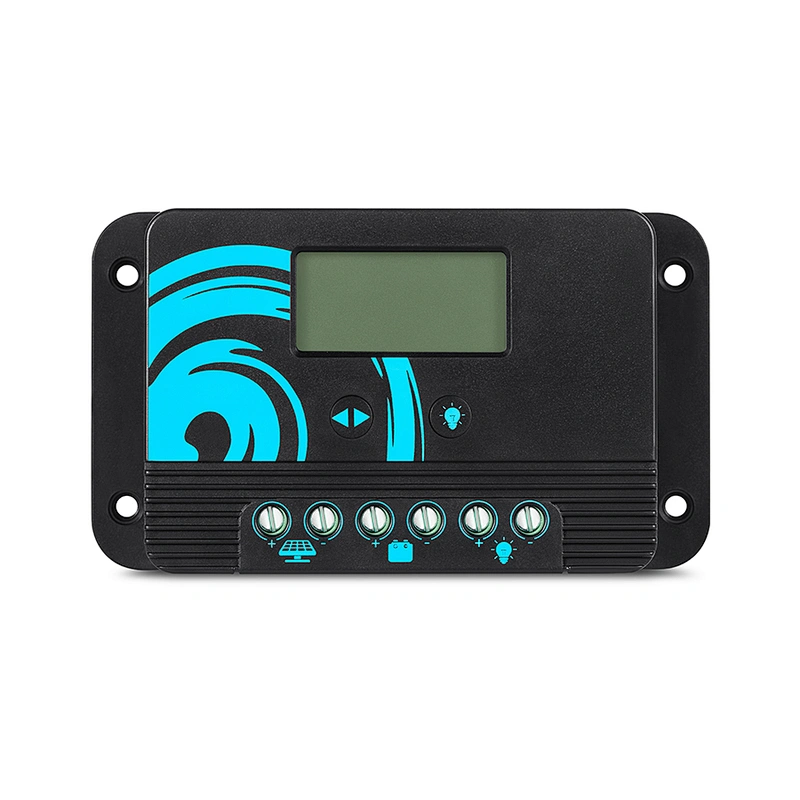

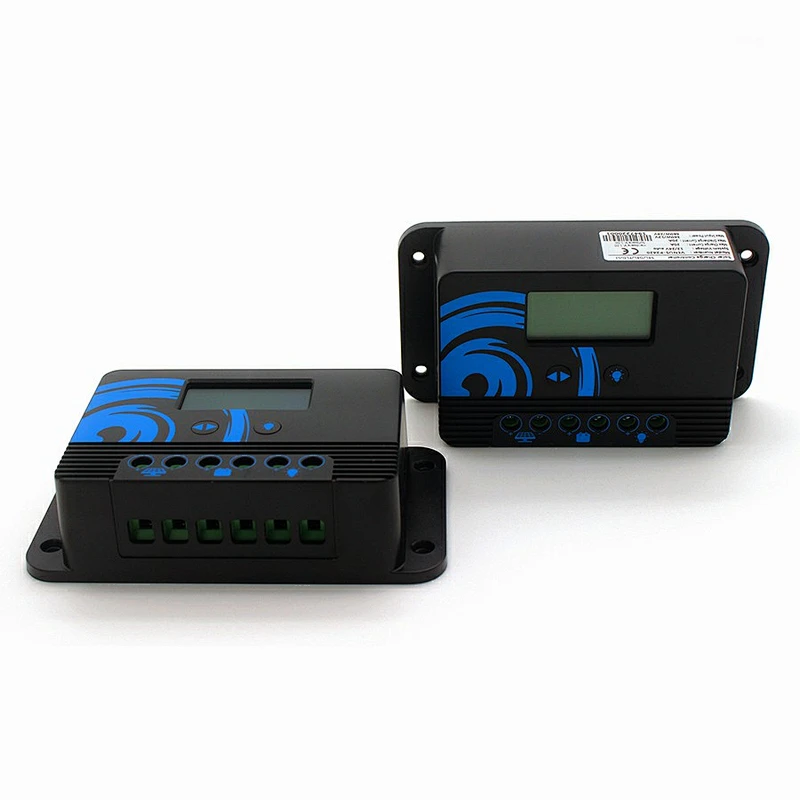

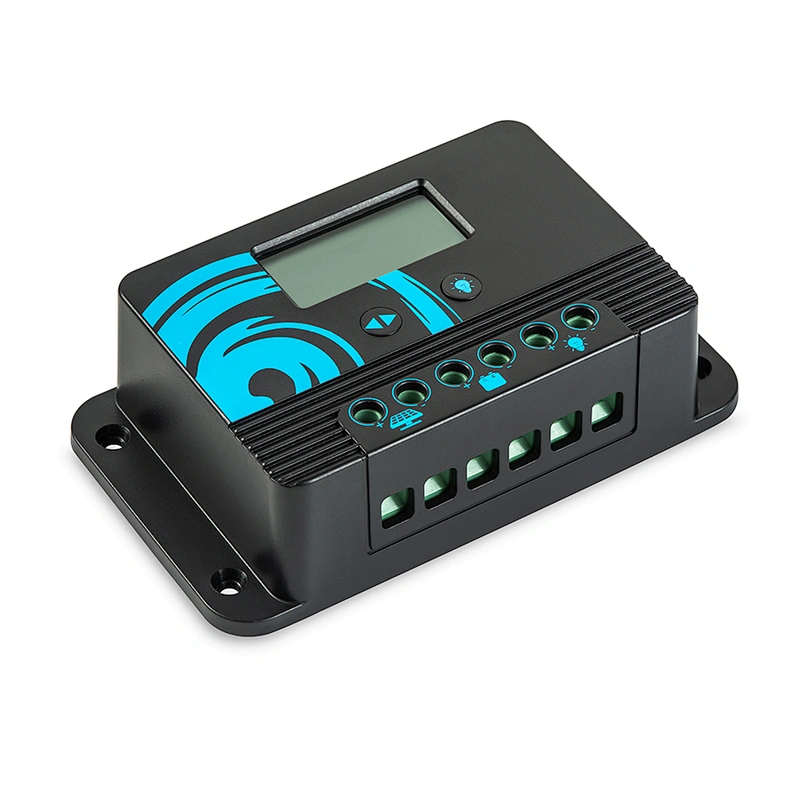

10A PWM Solar Charge Cnotroller 12/24V Auto

Model NO.P2410

P2410 is a solar charge controller with advanced Pulse Width Management (PWM) 3-phase charge technology, for small size solar stand alone power system.

It is a basic and typical solar controller model, widely used all around the world, with various kinds of uses.

rv mppt charge controller
rv mppt charge controller
best rv solar charge controller
10a charge controller
charge controller for 400 watt solar panel
best charge controller for lithium ion battery
lithium ion battery charge controller
rv mppt charge controller
best rv solar charge controller
10a charge controller
charge controller for 400 watt solar panel
best charge controller for lithium ion battery
lithium ion battery charge controller
  • Features
  • Specifications
  • Downloads
  • Optional Accessories

10A PWM Solar Charge Controller
12/24V Auto

Model No.: VENUS-P2410

10A PWM Solar Charge Controller
​​​




Key Figures

  • 12/24V battery system auto recognition
  • Full range of electronic protections
  • LCD display & key operation for parameter settings
  • Lead-acid AGM/GEL/Flooded & Lithium battery supportable
  • Multiple MOSFET & optimized PCBA design for better cooling effect


Extensive Device Functions

  • Li mode use for lithium battery charge & discharge
  • Up to 17 kinds of DC load output control, including"dusk to dawn"& manual switch

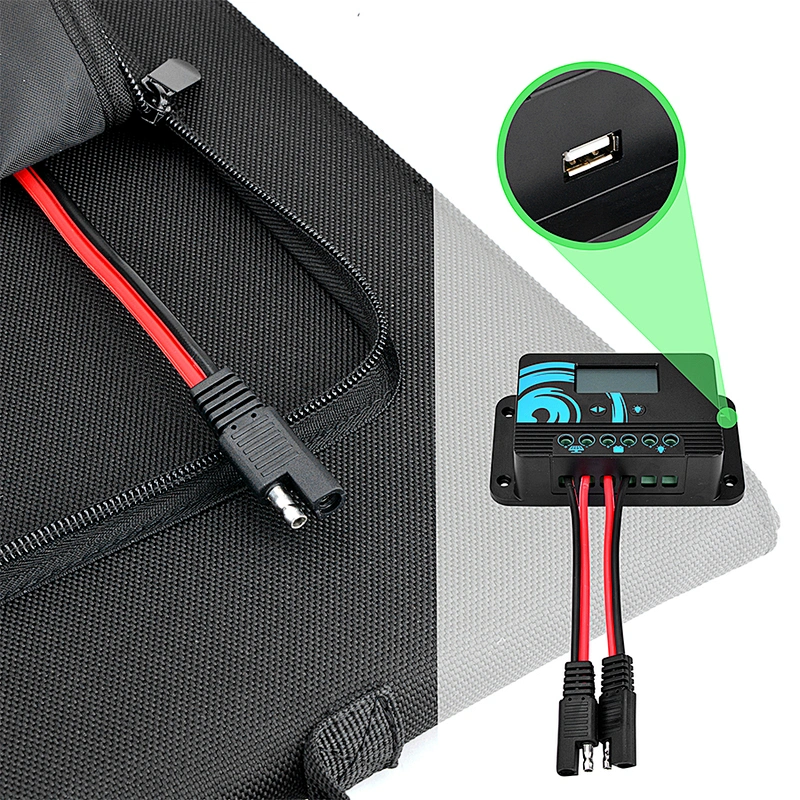

  • Extra USB 5V 1A DC output
  • One more year of warranty than other similar models in the market

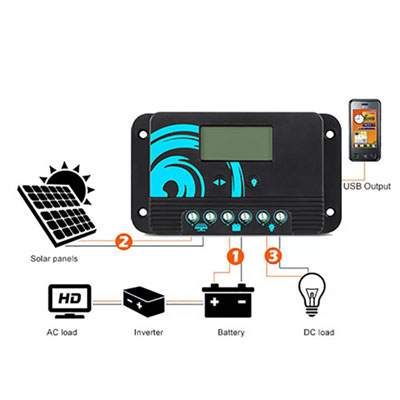

Application:



    RV/CaravanMarineSolar HomeSolar Bag
            RV/Caravan                     Marine                      Solar Home                   Solar Bag



CONTROLLER PARAMETER


Controller Parameter Value
Model No. P2410 P2420
Battery System Voltage 12V/24V
Auto (FLD/GEL/SLD)
Manual (Li)
No-load Loss 12ma/ 12V; 10ma/24V
Max Solar Input Voltage <55Voc
Rated Solar Charge Current 10A 20A
Max Solar Input Power 170W/12V; 340W/24V 340W/12V; 680W/24V
Light Control Voltage 5V*n
Light Control Delay Time 10s
Max Load Output Current 10A 20A
USB Output 5V 1A
Operating Temperature -35ºC ~ +45ºC
IP Protection IP32
Net Weight 0.17 kg
Operating Altitude ≤ 3000 meters
Controller Dimension 122*70*34.5mm
Battery Voltages Battery Parameters
Battery Types FLD SEL GEL
(default)
USER
(adjustable)
LI
(adjustable)
Equalize Charge Voltage  14.8V*n   14.6V*n  - Default -
Boost Charge Voltage  14.6V*n  14.4V*n 14.2V*n Default: GEL Default: 14.2V*n
Float Charge Voltage 13.8V*n Default: GEL -
Boost Charge Recovery Voltage 13.2V*n Default: GEL -
Over-discharge Recovery Voltage 12.6V*n Default: GEL -
Over-discharge Voltage 11.1V*n Default: GEL Default: 11.1V*n
           24V PWM24V PWM
